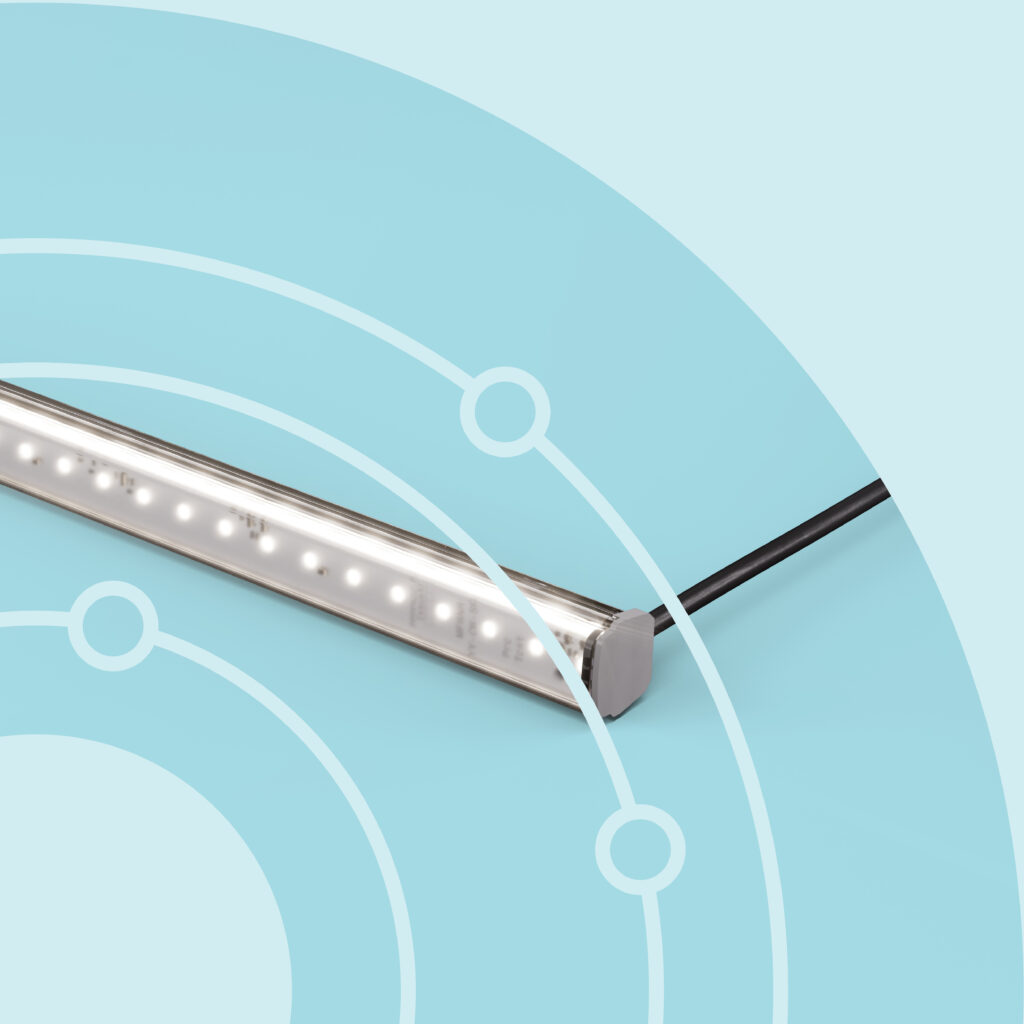

CL6250 Fokuselement

CL6250

Ceiling Light

Description

White LED Ceiling Light, designed for various types of Airbus and Boeing aircraft

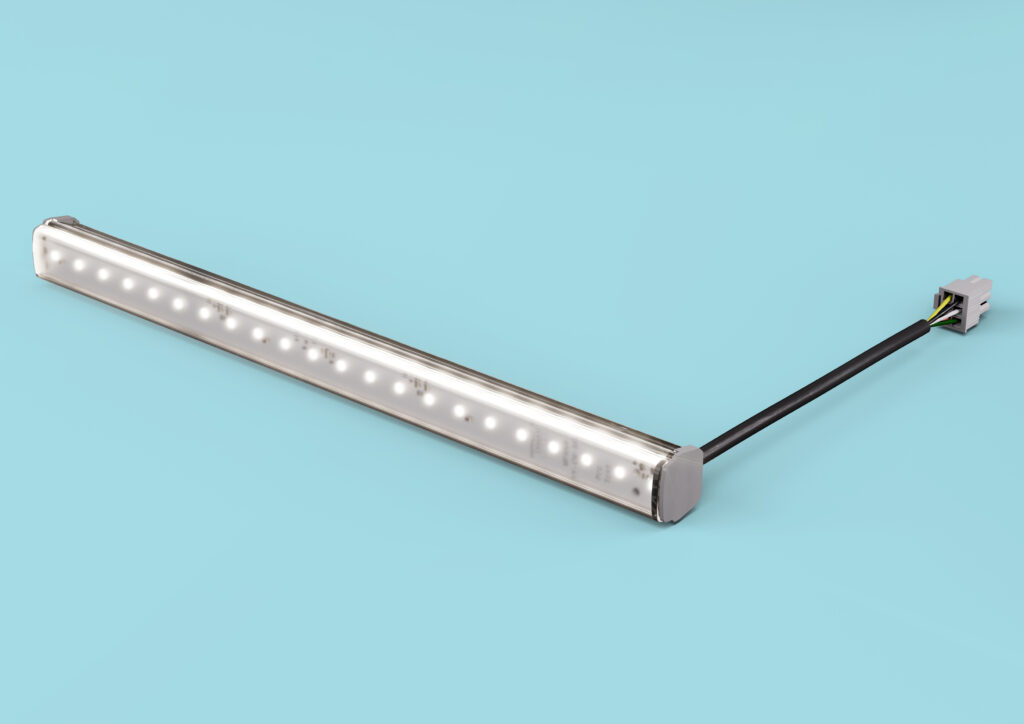

CL6250 Produktbild

Key features

Electrical

  • 4 step dimming LED:
    100%, 50%, 30%, 10%
  • interface connection:
    6 pin Molex Mini Fit Jr. with one
    bonding wire or without connector

Mechanical

  • qualified i.a.w. RTCA-DO160 and
    ABD0100
  • mounting brackets: WLC2407

Other

  • passenger cabin as well as decorative
    lighting
  • lens covers available: flat diffuse
  • colour temperatures available:
    3000 K, 4000 K and 5000 K
  • MTBF > 50,000 OH

Technical data

Mechanical dimensions

  • length: 11”, 13” – 48” (in 1” increments)
  • width: 22 mm
  • height: 20 mm
  • weight: Max. 10 g / inch (incl. lens, and pigtail)

Electrical data

  • Voltage: 115 V AC / VF 360-800 Hz
  • Power consumption max. 0.3 W / inch
