CL6200

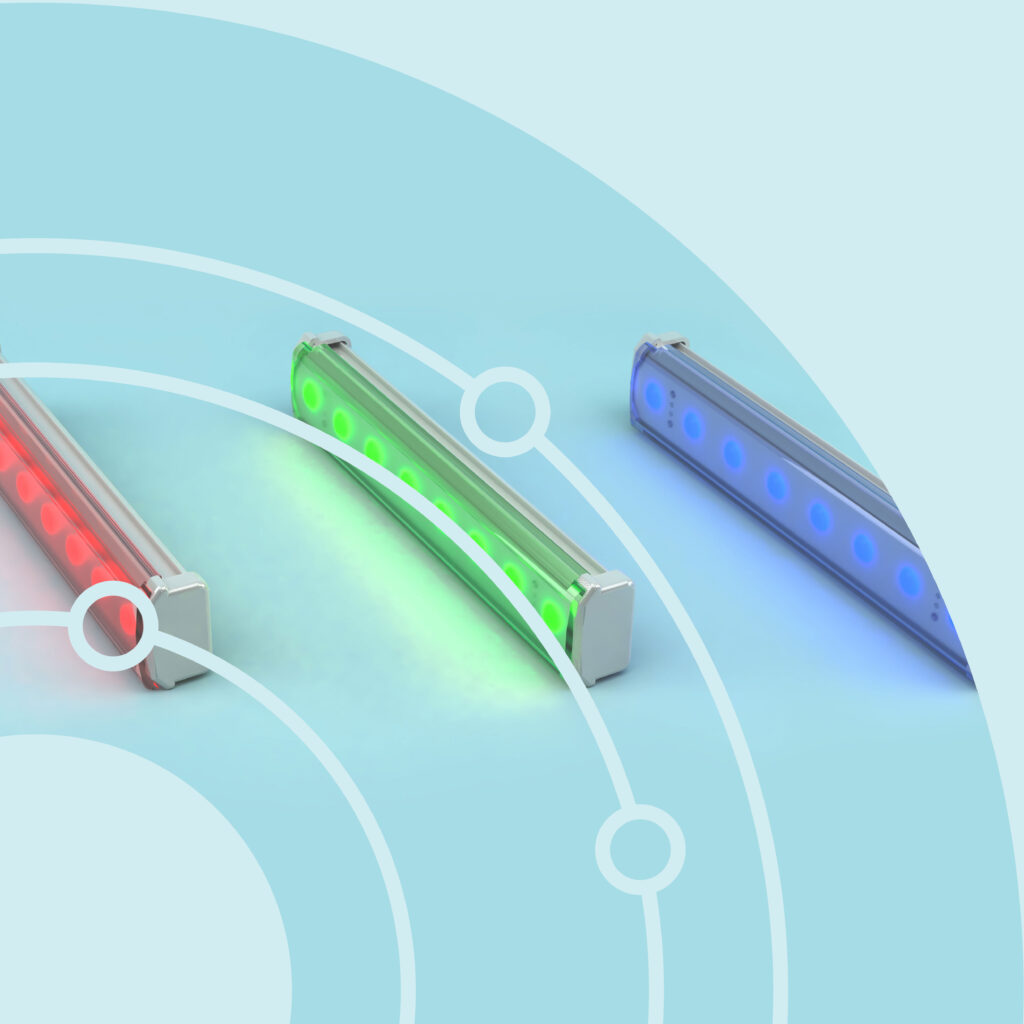

RGBW LED Ceiling Lights

Description

RGBW LED Ceiling Lights of the second generation, application designed for various aircraft

Key features

Electrical

active temperature control
control by RS485, e.g. via LC0300 or LPU1009
interface connection SJS840400 mates with SJS840410

Mechanical

daisy-chain configuration up to a total length of 10 m
Qualification acc. to RTCA-DO160 in process
mounting brackets: WLC2407

Other

universal cabin as well as decorative lighting –
designed to substitute normal fluorescent lamps
available lens covers: round clear, round diffused, round opal white, focused 45°, flat clear
Color available: RGB+W ~ 4,4 billion colors (42 bit)
MTBF > 40,000 OH

Technical data

Mechanical dimensions

length: 3″- 78″ (excl. 5″)
width: 18 mm (without lenses)
height: 9 mm (without lenses and brackets)
weight: 11 g / inch (incl. lenses, brackets or end caps)

Electrical data

voltage: 28 V DC
power consumption: max. 0.45 W / inch
